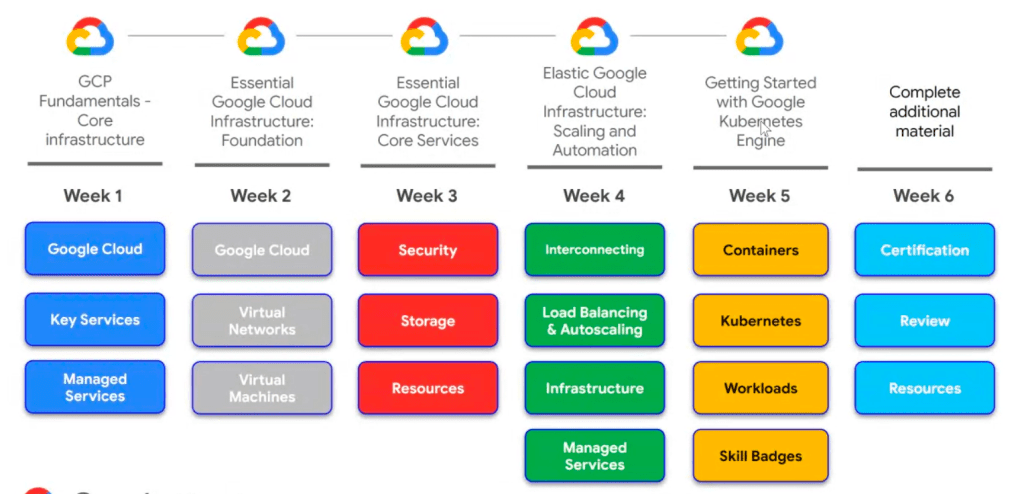

GCP Associate Cloud Engineer (Week 5)

Getting Started with Google Kubernetes Engine

  • Kubernetes: a software layer that sits between applications and hardware infrastructure

Introduction to Google Cloud

  • Cloud computing has five fundamental attributes
    • On-demand & self-service: No human intervention needed to get resources
    • Broad network access: resources are accessible over a network from any location
    • Resource pooling: Provider shares resources to customers
    • Rapid elasticity: Get more resources quickly as needed
    • Measured service: Pay only for what you consume

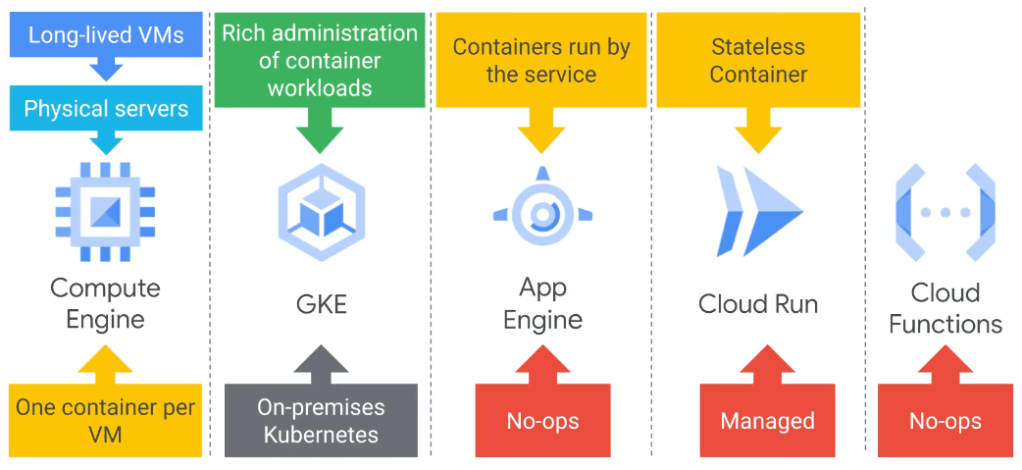

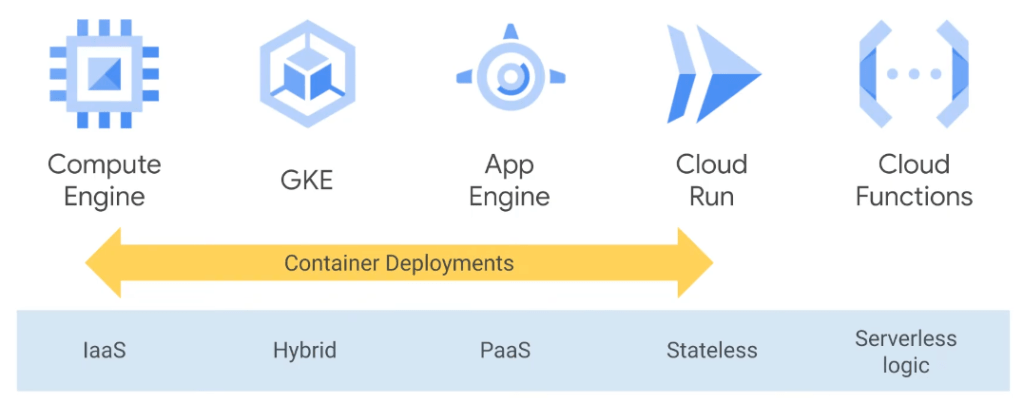

  • Google Cloud offers a range of services
    • Computer Engine: run VM on-demand in the cloud; infrastructure as a service; maximum flexibility to manage the server instances
    • Google Kubernetes Engine (GKE): run containerized application in the cloud; google cloud manages the infrastructure under your administrative control
      • Containerization: a way to package code that’s designed to be highly portable and to use resources very efficiently
      • Kubernetes: a way to orchestrate code in containers
    • App Engine: GCP’s fully managed platform as a service framework; a way to run code in the cloud without having to worry about infrastructure
    • Cloud Functions: serverless execution environment or function as a service;

Introduction to Containers and Kubernetes

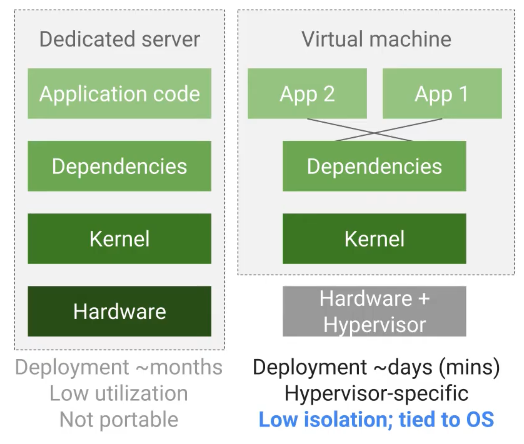

  • A hypervisor
    • Software layer
    • Breaks the dependencies of an operating system with its underlying hardware
    • Allows several virtual machines to share the same hardware
    • Example: kvm

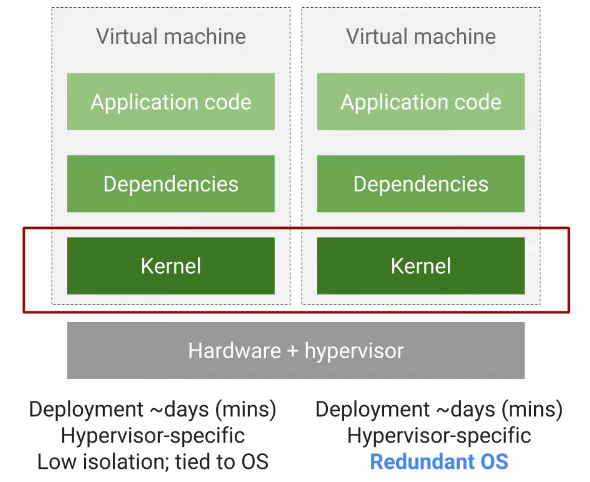

  • Virtualization
    • Pros: waste less resources; improved portability
    • Cons:
      • All of the dependencies of the application and the operating system are bundled together
      • Applications that share dependencies are not isolated to each other
    • VM-centric way to solve the problem
      • Kernel is system software which is part of operating system

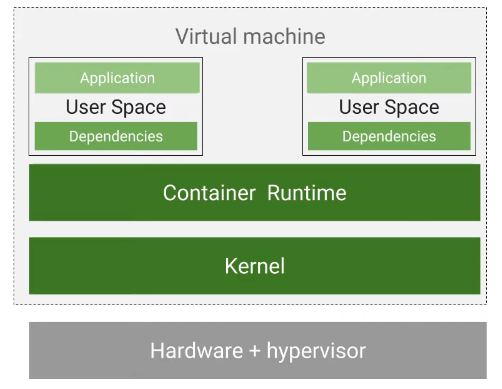

    • User space abstraction and containers
      • Implement abstraction at the level of the application and its dependencies
      • Containers are isolated user spaces for running code
        • It packs all your code with the dependencies it needs
        • And the engine that executes container is responsible for making them available at runtime
  • Docker
    • An application and its dependencies are called an image (?)
    • A container is a running instance of an image
    • A software is needed to build container images and to run them -> Docker

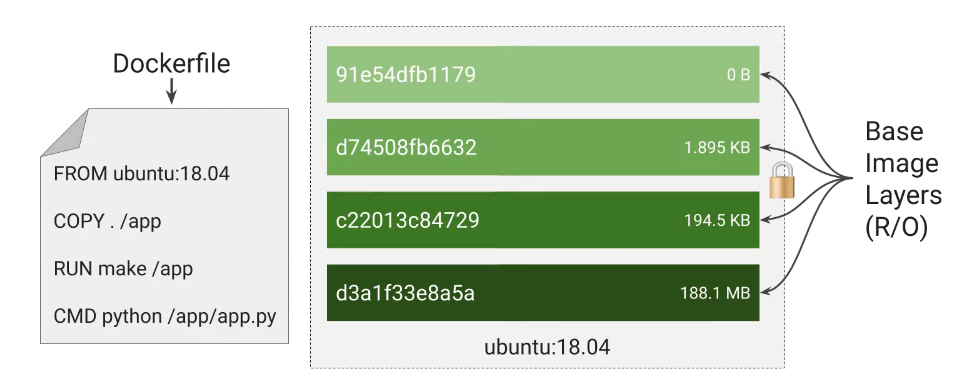

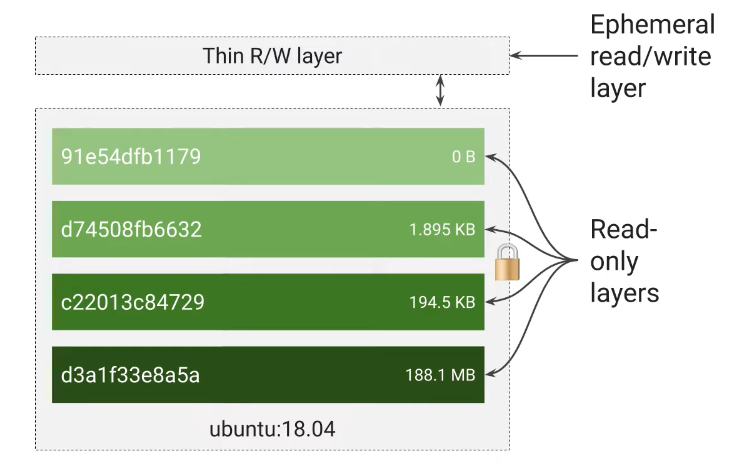

    • Container image is structured in layers
      • Instructions are specified in container manifest
      • Each layer is read-only when a container runs from this image
      • They will have a writable ephemeral topmost layer
  • Kubernetes
    • Container management and orchestration solution
    • Features:
      • Supports both stateful and stateless applications
      • Autoscaling
      • Resource limits
      • Extensibility
  • Google Kubernetes Engine (GKE)
    • Fully managed
    • Container-optimized OS
    • Auto upgrade k8s
    • Auto repair node
    • Cluster (a kubernetes system) scaling
    • Seamless integration with Container Registry and Cloud Build
    • IAM
    • Integrated logging and monitoring
    • Integrated networking
    • Cloud Console
  • Compute Engine
    • Fully customisable virtual machines
    • Persistent disks and optional local SSDs
    • Global load balancing and autoscaling
    • Per-second billing
    • Use cases:
      • Complete control over the IS and virtual hardware
      • Well suited for lift-and-shift migration to the cloud
      • Most flexible compute solution, often used when a managed solution is too restrictive
  • App Engine
    • Provides a fully managed, code-first platform
    • Streamlines application deployment and scalability
    • Provides support for popular programming languages and application runtimes
    • Supports integrated monitoring, logging, and diagnostics
    • Simplifies version control, canary testing and rollbacks
    • Use cases:
      • Websites
      • Mobile app and gaming backends
      • RESTful APIs

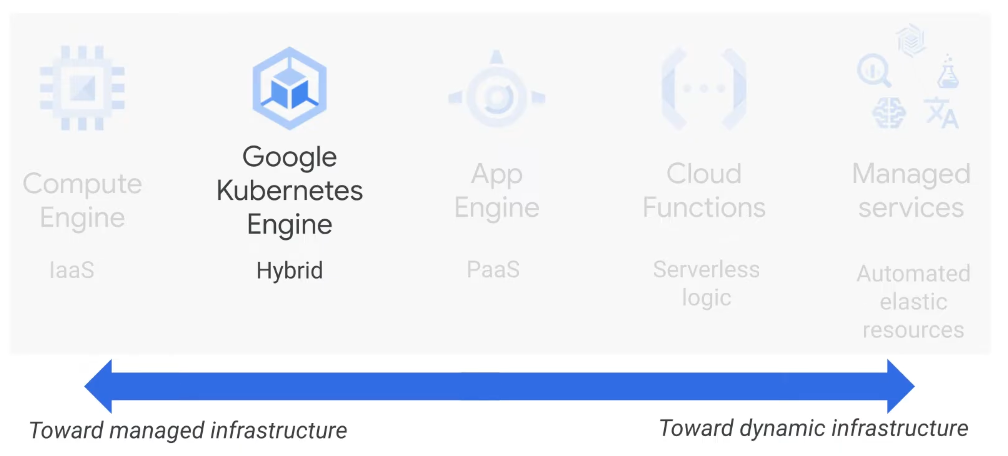

  • Google Kubernetes Engine
    • Fully managed Kubernetes platform
    • Supports cluster scaling, persistent disks, automated upgrades, and auto node repairs
    • Built-in integration with Google Cloud services
    • Portability across multiple environments
      • Hybrid computing
      • Multi-cloud computing
    • Use cases:
      • Containerized applications
      • Cloud-native distributed systems
      • Hybrid applications
  • Cloud Run
    • Run stateless containers via web request or cloud pub/sub events
    • Abstracts away infrastructure management
    • Automatically scales up and down
    • Open API and runtime environment
    • Use cases:
      • Deploy stateless containers that listen for requests or events
      • Build application in any language using any frameworks and tools
  • Cloud Function
    • Event-driven, serverless compute service for single purpose functions
    • Automatic scaling with highly available and fault-tolerant design
    • Charges apply only when your code runs
    • Triggered based on events in Google Cloud services, HTTP endpoints and Firebase
    • Use cases:
      • Supports microservice architecture
      • Serverless application backends:
        • Mobile and IoT backends
        • Integrate with third-party services and APIs
      • Intelligent applications
        • Virtual assistant and chat bots
        • Video and image analysis

Kubernetes Architecture

  • Two concepts:
    • Each thing Kubernetes manage is represented by an object, you can view and change their attributes and state
    • Declarative mangement
  • Two elements to Kubernetes objects:
    • Object spec: desired state described by us
    • Object status: current state described by Kubernetes
  • Containers in a Pod share resources
    • The smallest deployable Kubernetes object
    • Embodies the environment where containers live
    • Can accommodate one or more containers
    • Each pod has a unique IP address

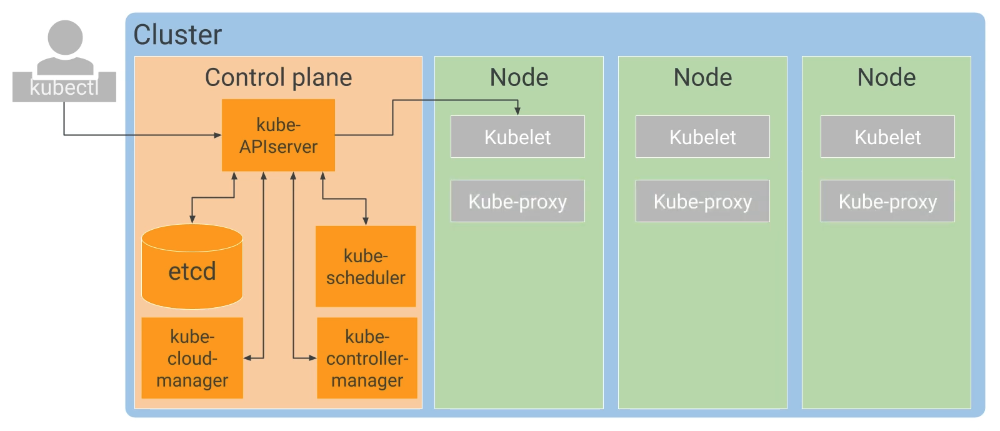

  • Kubernetes Control Plane
    • Control plane (master node)
      • Coordinate the entire cluster
      • Critical Kubernetes components:
        • kube-APIserver: direct interaction, accept commands (kubectl)
        • etcd: clusters database; reliably store state of the cluster
        • kube-scheduler: scheduling pods onto nodes
        • kube-controller-manager: continuously monitors the state of the cluster through kube-APIserver
        • kube-cloud-manger: interact with the underlying cloud providers

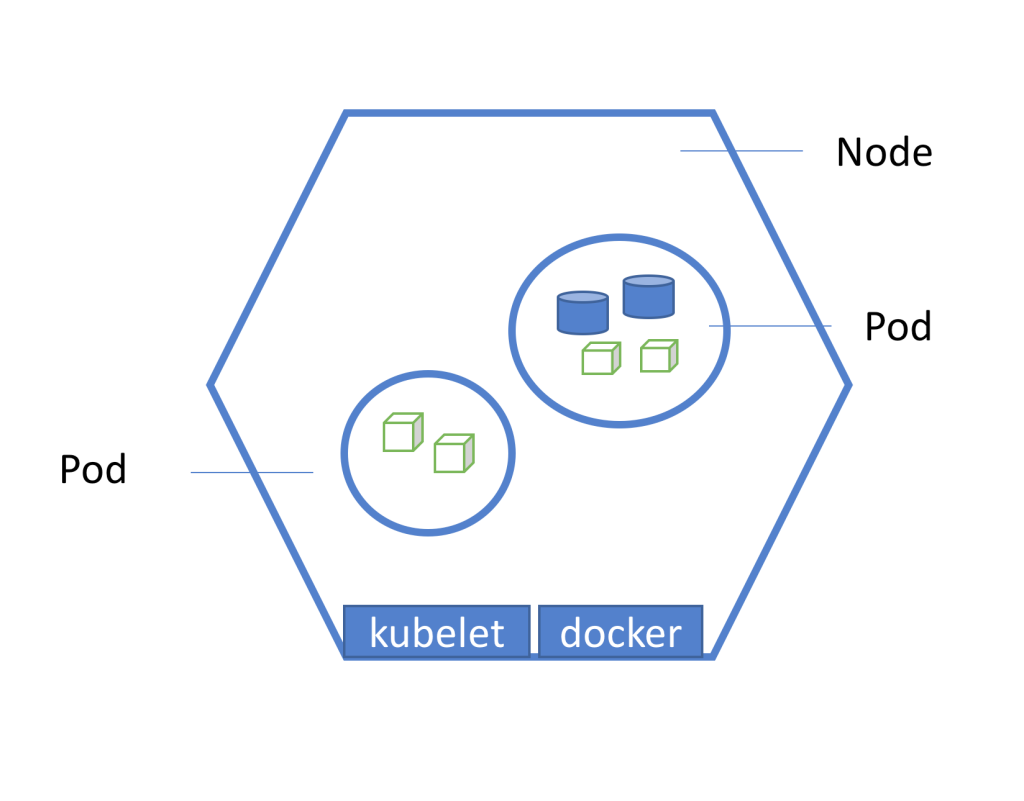

    • Nodes
      • A node represents a computing instance
      • Job is to run pods
      • Each node runs a small family of control plane: Kubelet

Kubernetes 101: Pods, Nodes, Containers, and Clusters

Hardware

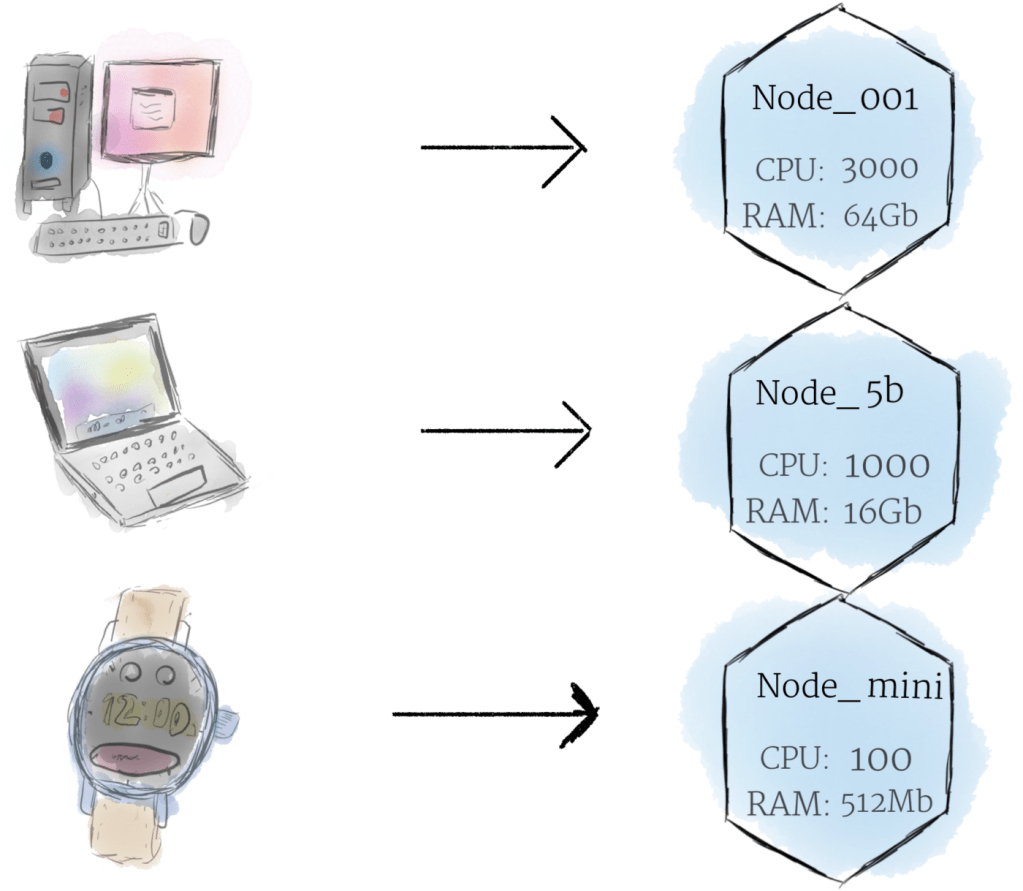

Nodes: It is a representation of a single machine in your cluster

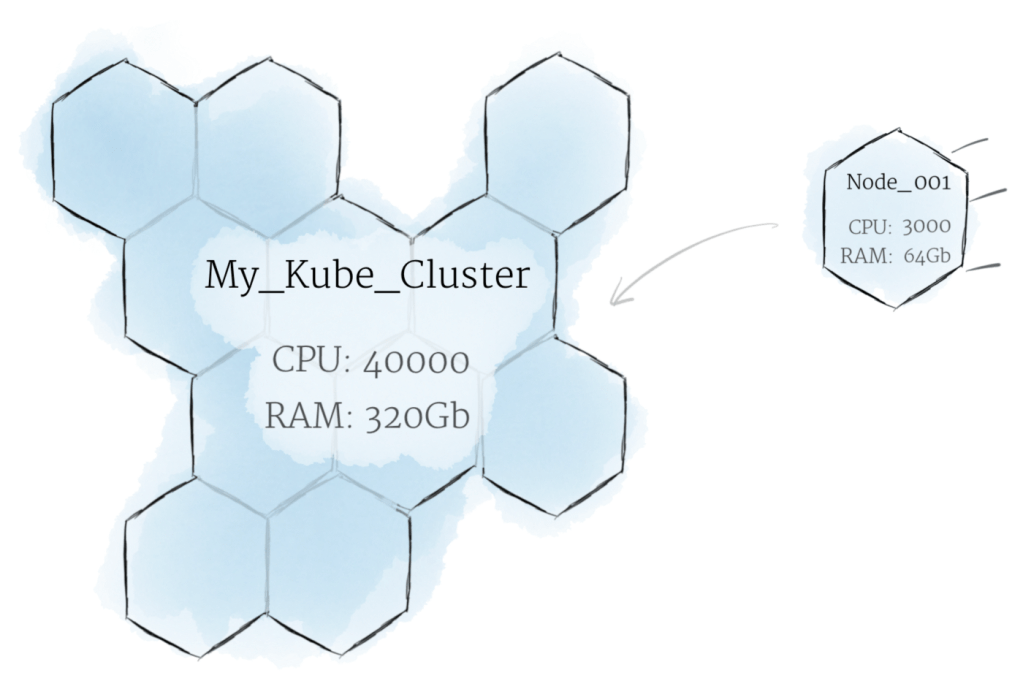

Cluster
Persistent Volumes

Software

Containers

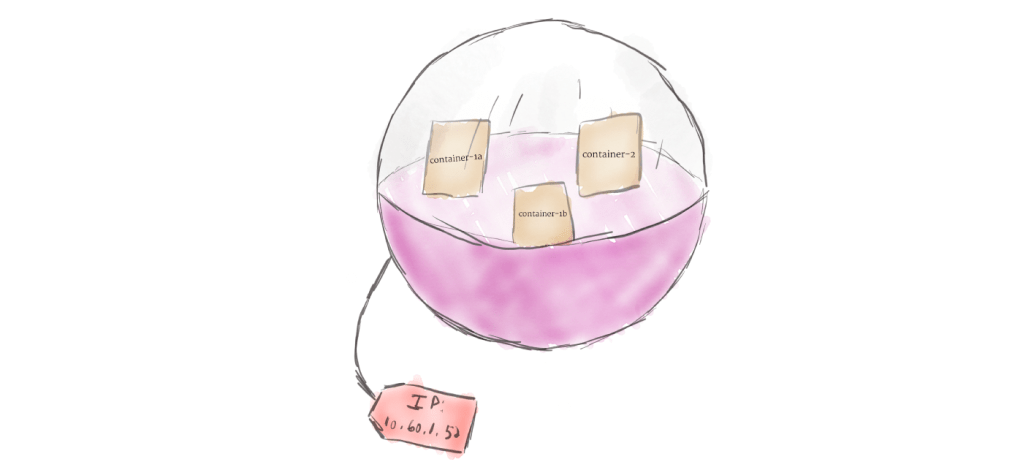

Pods

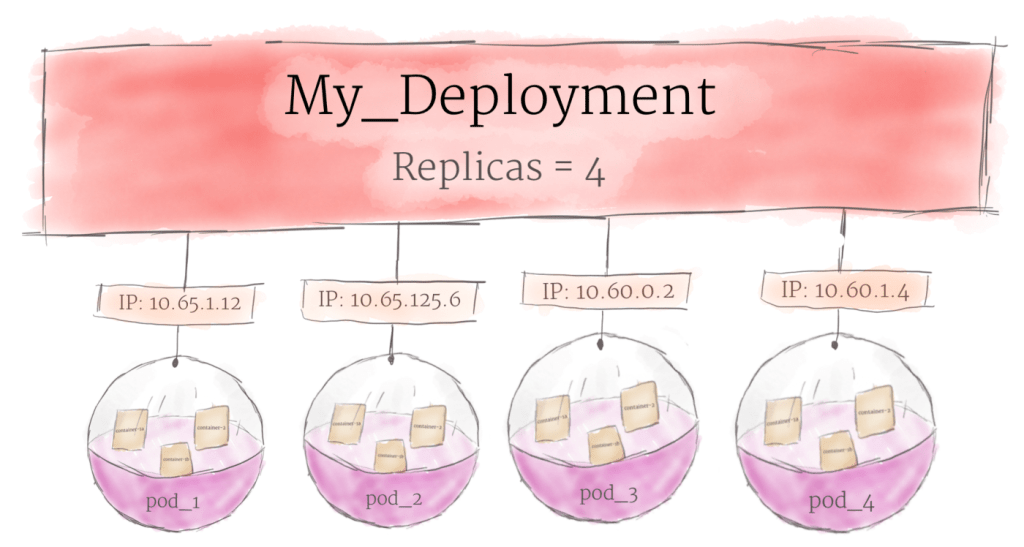

Deployments
Ingress
  • Google Kubernetes Engine
    • Regarding Nodes:
      • Kubernetes doesn’t create nodes, cluster admins create nodes and add them to Kubernetes
      • GKE manages this by deploying and registering Compute Engine instances as nodes
    • GEK feature: A node pool is a subset of nodes within a cluster that share a configuration

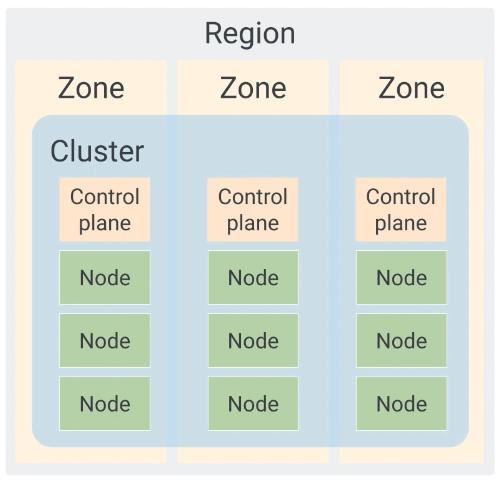

    • By default, a cluster with three nodes in same zone; regional cluster to improve availability with single API endpoint
    • A regional or zonal GKE cluster can be set up as a private cluster
      • Not accessible to the public
      • Accessible to
        • Google cloud products
        • Authorized networks
    • Object Management
      • Use version control on YAML files
      • All objects are identified by name
      • All objects are assigned a unique identifier (UID) by k8s
      • Labels can be matched by label selectors
      • Controller objects:
        • Manage pods
        • Types:
          • Deployment: long-lived software components
          • StatefulSet
          • DaemonSet
          • Job

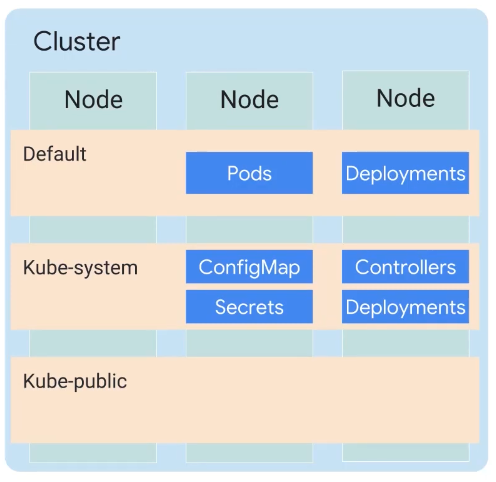

      • Namespaces
        • More flexible assign namespace when run kubectl cmd instead of write in YAML file
  • Services:
    • Provide load-balanced access to specified Pods
    • Three types:
      • ClusterIP: exposes the service on an IP address that is only accessible from within this cluster (default)
      • NodePort: exposes the service on the IP address of each node in the cluster, at a specific port number
      • LoadBalancer: expose the service externally, using a load balancing service provided by a cloud provider
  • Controller objects:
    • ReplicaSets
    • Deployments
    • Replication Controllers
    • StatefulSets
    • DaemonSets
    • Jobs

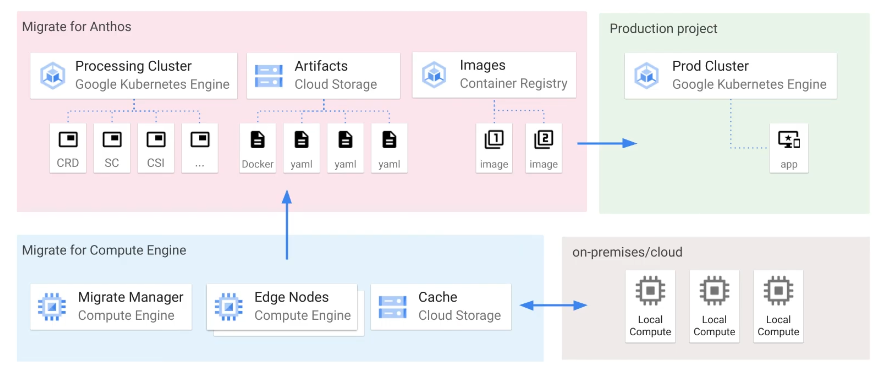

  • Application Migration: Migrate for Anthos
    • Anthos is Google’s new managed applications platform, which lets you run Kubernetes and other workloads consistently, across on-premises data centers and multiple public clouds
    • A migration requires an architecture to be built
    • Steps:
      • Configure processing cluster, install Migrate For Anthos component
      • Add migration source
      • Generate and review plan, a plan template in YAML file
      • Generate artifacts
      • Test
  • Artifacts & Image
    • The runnables/libs are the artifact(s) produced when compiling source
    • The image is the artifact produced by the whole “build”-step, basically an artifact containing one or more other artifact(s)

Kubernetes Workloads

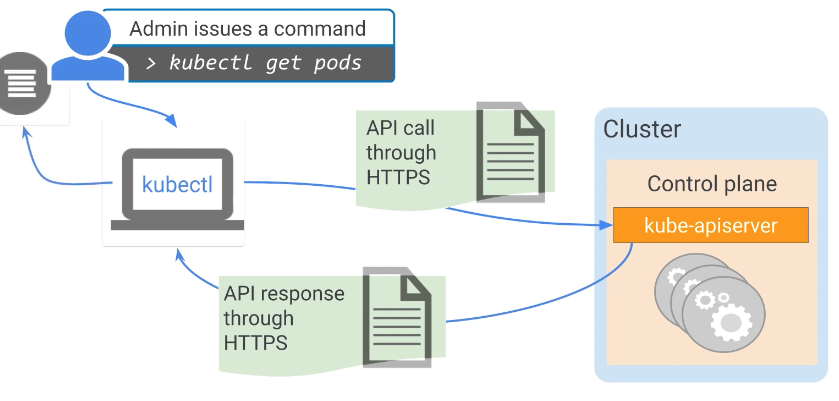

  • kubectl command
    • kubectl transforms command-line entries into API calls
    • Must be configured first
      • Target cluster name
      • Credentials for the cluster: gcloud get-credentials
    • A tool for administering internal state of an existing cluster
    • Uses:
      • Create Kubernetes objects
      • View objects
      • Delete objects
      • View and export configurations
  • Deployment
    • Describes a desired state of pods
    • Well-suited for stateless applications, eg web frontend
    • Three ways to create a Deployment
      • Declaratively using a manifest file, kubectl apply -f
      • Imperatively using kubectl run that specifies the parameters inline
      • GCP console
    • Scaling a Deployment
      • Manually
      • Autoscale
    • Updating a Deployment
      • kubectl apply -f <updated-yaml file>
      • kubectl set image deployment
      • kubectl edit
      • GCP console

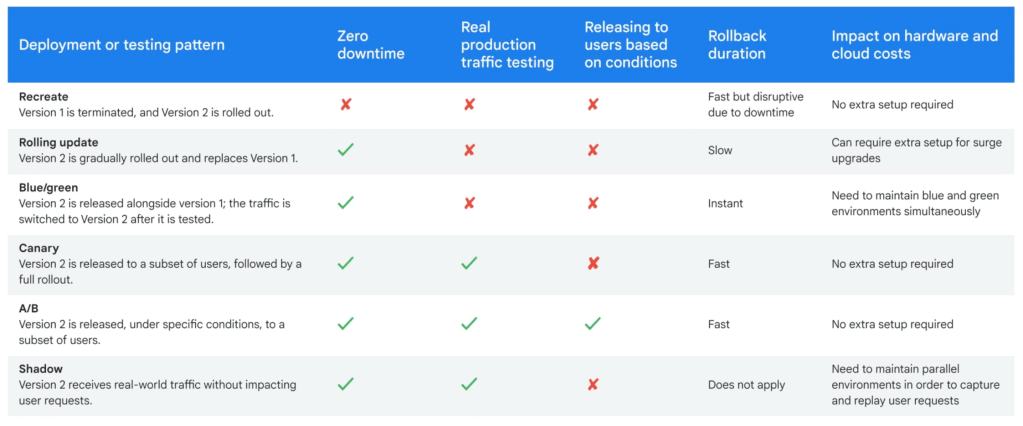

    • Blue/green Deployment strategy
    • Canary Deployment
      • Based on Blue/Green method
      • The traffic is gradually shifted to the new version
      • Session affinity ensures that all client requests are sent to the same Pod
    • A/B testing is used to measure the effectiveness of functionality in an application
    • Shadow testing (?) allows you to run a new, hidden version

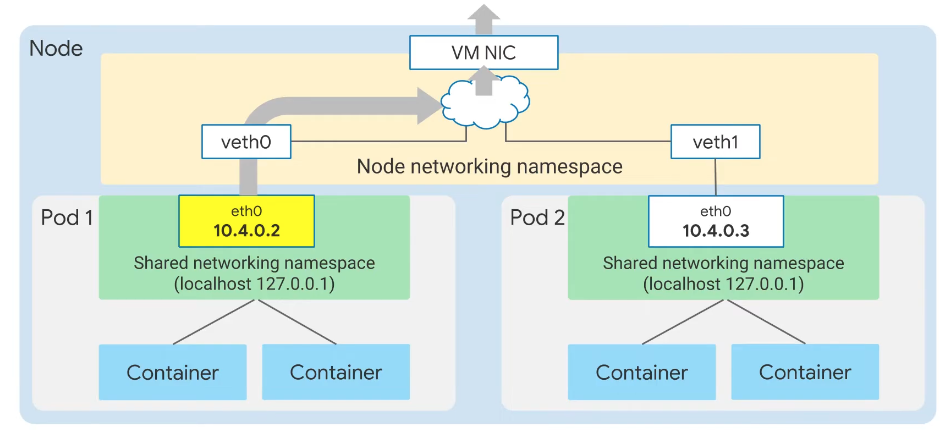

  • Pod networking (?)

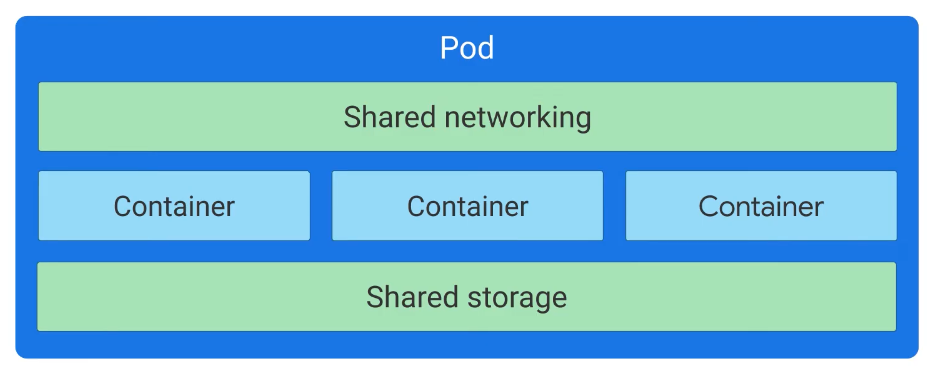

    • A Pod is a group of containers with shared storage and networking
    • Within the same Pod
    • Nodes get Pod IP addresses from address ranges from VPC
  • Volumes
    • Are a directory which is accessible to all of the containers in a Pod
    • Some Volumes are ephemeral
      • emptyDir:
        • Attach to a Pod
        • Allow the containers within the Pod to read and write
        • Safe across container crushes
      • ConfigMap:
        • Inject application configuration data into Pods
        • Object can be referenced in a volume
      • Secret
        • Stores sensitive info, such as passwords
      • downwardAPI
        • Makes data about Pods data available to containers
    • Some are persistent

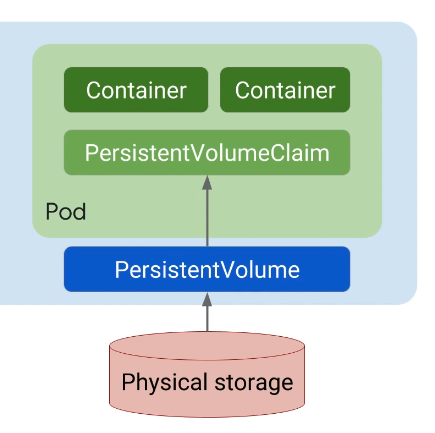

      • PersistentVolume
        • Manage durable storage in a cluster by Kubernetes
        • Are independent of the Pod’s lifecycle
        • Persistent Disks are used by GKE as PersistentVolumes
      • PersistentVolumeClaim

  • Stateful & Stateless
    • Stateful services keep track of sessions or transactions and react differently to the same inputs based on that history
    • Stateless services rely on clients to maintain sessions and center around operations that manipulate resources, rather than the state.

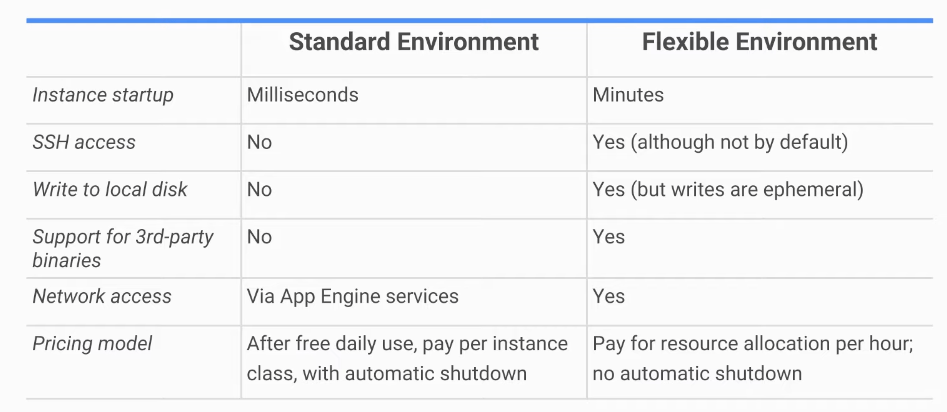

App Engine

  • Standard
    • Easily deploy your applications
    • Autoscale workloads
    • Free daily quota
    • Usage based pricing
    • SDKs for development, testing locally and deployment to cloud
    • Specific versions of Java, Python, PHPm and Go
    • Sandbox constraints:
      • No writing to local files
      • All requests time out at 60s
      • Limits on third-party software
    • Access a variety of services using dedicated APIs
  • Flexible
    • Build and deploy containerized apps with a click
    • No sandbox constraints
    • Can access App Engine resources

Bonus

  • Kubernetes VS Docker Compose
    • Both container orchestration frameworks
    • Kubernetes runs containers over a number of computers, virtual or real
    • Docker Compose runs containers on a single host machine
