GCP Associate Cloud Engineer (Week 1)

• Google Cloud Pillars
  • Compute
  • Storage
  • Networking
  • Security

Compute

• GCE (VM) – highly customized
• GKE
• App Engineer
• Cloud Functions
• Cloud Run

Introducing Google Cloud

• What is Cloud Computing?
  • On-demand self-service – No human intervention needed to get resources
  • Broad network access – Access from anywhere
  • Resource pooling – Provide shares resources to customers
  • Rapid elasticity – Get more resources quickly as needed
  • Measured service – Pay only for what you consume
• Cloud history
  • Colocation
    • User-configured, managed and maintained
  • Virtualization
    • User-configured, Provider-managed and maintained
  • Serverless
    • Fully automated
• Every company is a data company
• GCP computing architectures (?)
  • Compute Engine – IaaS
  • Kubernetes Engine – Hybrid
  • App Engine – PaaS
  • Cloud Functions – Serverless logic
  • Managed Services – Automated elastic resources
  • From managed infrastructure to dynamic infrastructure
• GCP is organized into regions and zones
  • Regions are independent geographic areas that consist of zones
    • Locations within regions tend to have round-trip network latencies of under 5 milliseconds on the 95th percentile
  • A zone is a deployment area for Google Cloud Platform resources within a region

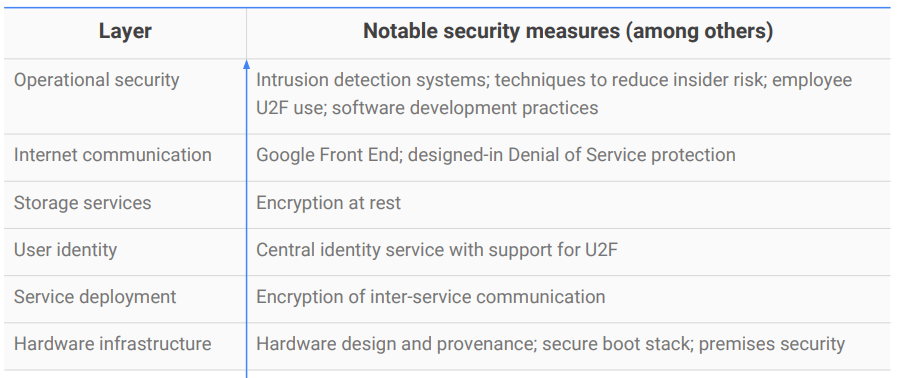

• Security is designed into Google’s technical infrastructure
  • Google Cloud security foundations guide

• Open API
  • GCP services are compatible with open source products
• Quiz:
  • Platform as a Service
  • Infrastructure as a Service
  • Virtualized data center

Getting Started with Google Cloud

• Cloud security requires collaboration
  • Google is responsible for managing its infrastructure security
  • Customer is responsible for securing data (Content, access policies etc )
• Resource Management
  • Projects, folders, and organization nodes are all places where policies can be defined
  • Identity and Access Management (IAM): who can do what on which resources
  • Least privilege: each user should have only those privileges needed to do their job
• All GCP services are associated with a project
  • Track resource and quota usage
  • Enable billing
  • Manage permissions and credentials
  • Enable services and APIs
• Projects have three identifying attributes:
  • Project ID: unique, unchangeable, human-readable string chosen by customer
  • Project name: not unique, changeable, chosen by customer
  • Project number: unique, unchangeable, assigned by Google
• Folders offer flexible management
  • The Cloud IAM Folders feature lets you assign policies to resources at a level of granularity you choose
  • The resources in a folder inherit IAM policies assigned to the folder
    • Folders group projects under an organization
    • Folders can contain projects, other folders or both
    • Use folders to assign policies
• IAM resource hierarchy
  • A policy is set on a resource
    • Each policy contains a set of roles and role members
  • Resources inherit policies from parent
    • Resource policies are a union of parent and resource
  • A less restrictive parent policy overrides a more restrictive resource policy
• IAM policy
  • Who:
    • Google account or Cloud Identity user
    • Google group
    • Service account
    • Cloud identity or G Suite domain
  • Can do what:
    • IAM role: a collection of permissions
      • Primitive – apply across all GCP services in a project
        • Owner
        • Editor
        • Viewer
        • Billing administrator
      • Predefined – apply to a particular GCP service in a project
      • Custom – let you define a precise set of permissions, cannot be used at folder level
• Service Accounts control server-to-server interactions
  • Give permissions to a service rather than to a person
  • Authenticate from one service to another
  • Control privileges used by resources
  • Identified with an email address and authenticate with cryptographic keys
  • Identity and resource at the same time

• Ways to interact with Google Cloud
  • Cloud Platform Console
  • Cloud Shell and Cloud SDK
  • Cloud Console Mobile App
  • REST-based API
• Cloud Platform Console – web user interface
  • Centralized console for all project data
  • Developer tools
    • Cloud Source Repositiories
    • Cloud Shell
    • Test Lab (mobile app testing)
  • Access to product APIs
  • Manage and create projects
• Google Cloud SDK
  • SDK includes CLI tools for Cloud Platform products and services
    • gcloud, gsutil (Cloud Storage), bq (BigQuery)
  • Available as Docker image
  • Available via Cloud Shell
• RESTful APIs
  • Programmatic access to products and services
    • Typically use JSON as an interchange format
    • Use OAuth 2.0 for authentication and authorization
  • Enabled through the Google Cloud Platform Console
  • To help control spend, most include daily quotas and rates
  • APIs Explorer
• Use client libraries to control GCP resources from within code (?)
  • Cloud Client Libraries
    • Community-owned, hand-crafted client libraries
  • Google API Client Libraries
    • Open source, generated
    • Support various languages
• Cloud Console Mobile App
  • Manage virtual machines and database instances
  • Manage apps in Google App Engine
  • Manage billing
  • Visualize projects with a customisable dashboard

• Cloud Marketplace gives quick access to solutions
  • Quickly deploy functional software packages that run on Google Cloud Platform offered both by Google and other third-party vendors
  • Pay for the underlying GCP resource usage
    • Some solutions also assess third party license fees

Essential Google Cloud Infrastructure: Core Services

• Compute services
  • Compute Engine
  • Google Kubernetes Engine
  • App Engine
  • Cloud Functions
  • Cloud Run
• Interacting with Google Cloud
  • GCP Console
    • Web-based graphical UI
    • console.cloud.google.com
  • Cloud Shell
    • Browser-based interactive shell environment
    • A temporary VM with 5GB of persistent disk storage that has the Cloud SDK pre-installed
