Data Structure and Algorithms 2

Non-linear structures

Tree

  • A tree is a data structure that stores elements in a hierarchy.
  • The elements are referred as nodes, and the lines connect them are edges. Each node has a value or an object.
  • The top node in a tree is called root, and the nodes have no children are leaf nodes.

Binary Trees

  • Use cases:
    • Represent hierarchical data
    • Databases indexing
    • Autocompletion
    • Compilers
    • Compression (JPEG, MP3)
  • Binary search tree
    • All value in the left sub-tree is less than the value of current node
    • Achieve logarithmic time complexity, each comparison throw away half of the items
    • Operations: O(log(n)) better performance than array and linked list
      • Lookup
      • Insert (first lookup then add link)
      • Delete (first lookup then remove it by reconnecting the edges)

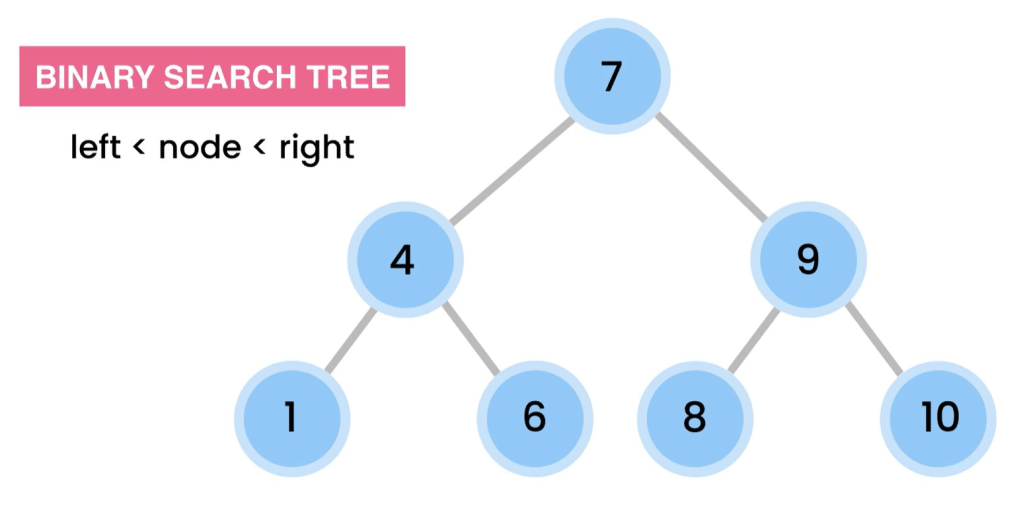

Binary search tree
  • Traversing
    • Breadth first (level order traversal): visit the nodes at the same level before visiting the nodes on the next level [7, 4, 9, 1, 6, 8, 10]
    • Depth first
      • Pre-order: root, left, right [7, 4, 1, 6, 9, 8, 10]
      • in-order: left, root, right [1, 4, 6, 7, 8, 9, 10 ] -> result is in ascending order
      • post-order: left, right, root [1, 6, 4, 8, 10, 9, 7] -> leaf nodes visited first
pre order
  • Recursion
    • A approach for implementing repetition in our code without loop
    • Happens when a function calls itself
    • Base condition: the condition to terminate the recursion
  • Depth and height of a node
    • depth: the number of edges from root to the node
    • height: is the opposite of depth, the number of edges along the longest path to a leaf (post order traversal)
  • Minimum value in a tree
    • Binary tree: recursively find the minimum value of the small trees O(n)
    • Binary search tree: the left most leaf O(log(n))
  • Exercises:
    • Validating a binary tree
    • Nodes at K Distance
    • getAncestors()

AVL Trees

  • A balanced tree: height(left) – height(right) <= 1

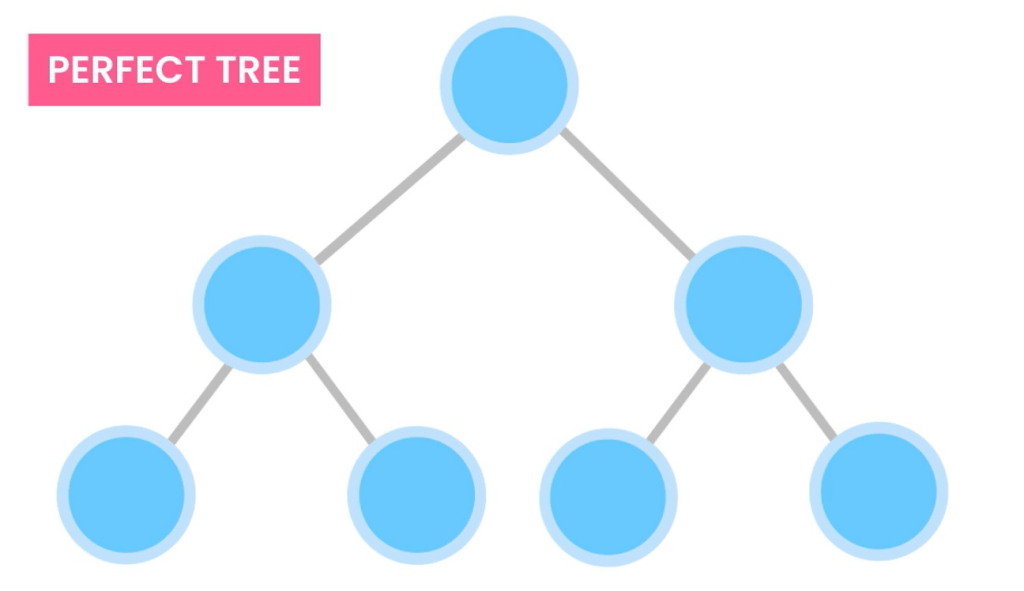

perfect tree

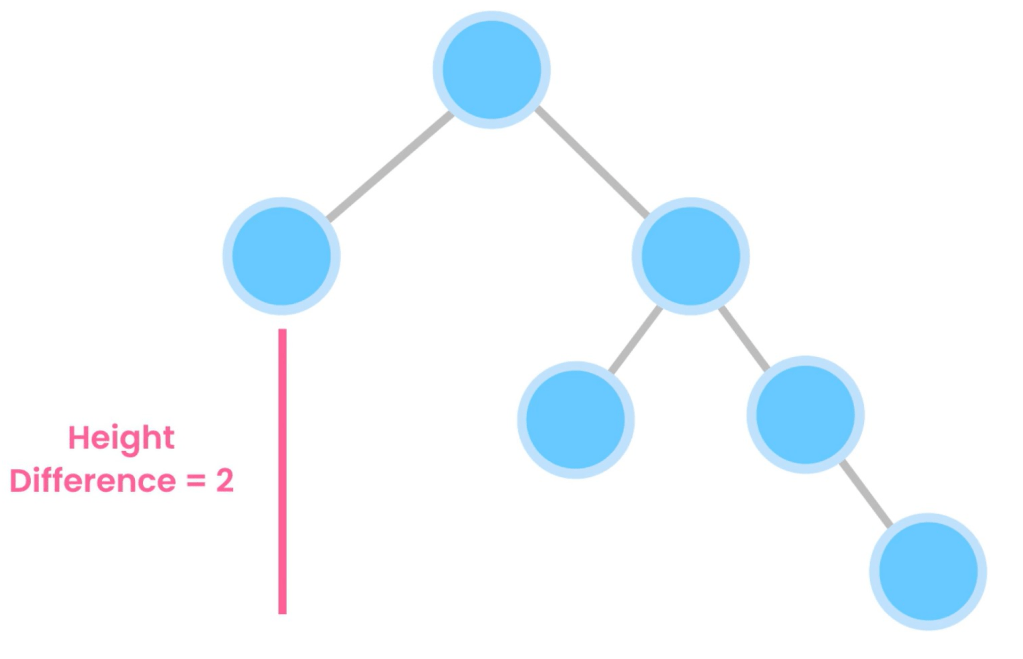

unbalanced tree

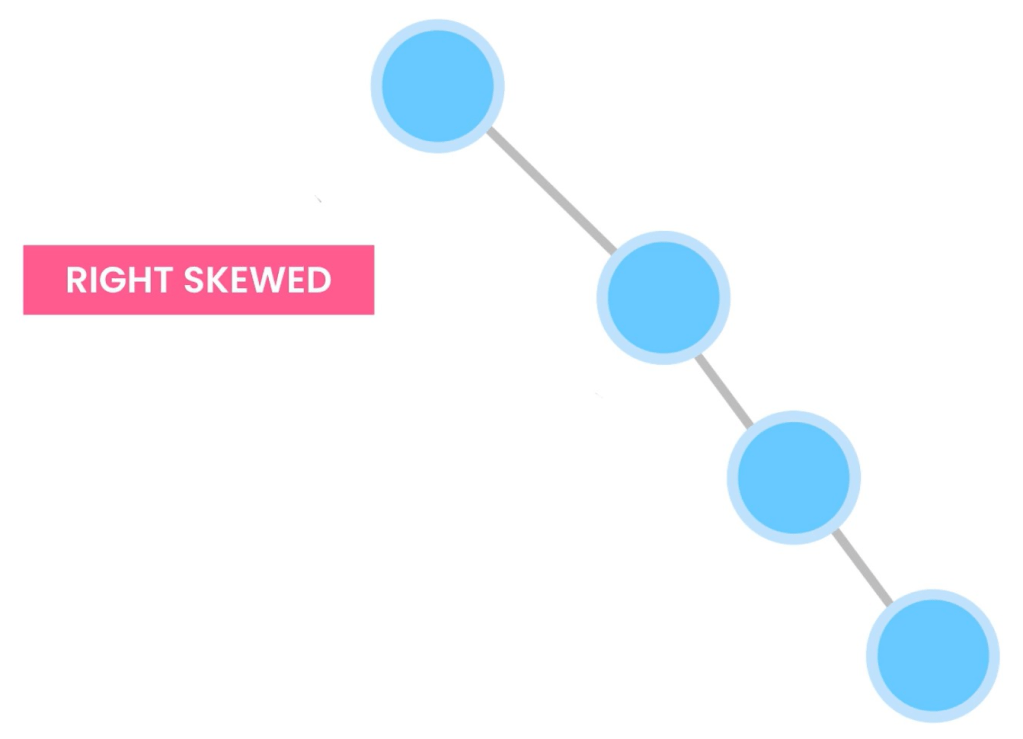

right skewed tree
  • When the inserted values are in sorted order
  • Self-balancing tree: AVL tree (Adelson-Velsky and Landis)
    • automatically rebalance themselves every time add or remove nodes, using rotations
  • Rotations: which method to use depends which side of the tree is heavy
    • Left (LL): when the tree is heavy at the right, put weight on left to push down (add edge)
    • Right (RR)
    • Left-Right (LR): the imbalance is from left child, right sub tree (smallest number in middle)
    • Right-Left (RL) (largest number in middle)
  • BalanceFactor = height(L) – height(R)
    • > 1 => left heavy
    • < -1 => right heavy
  • Implementing rotation
    • after rotation, the height of root and new root would change, reset height
    • the root is changed, insert function instead of having no return type, should return new root node

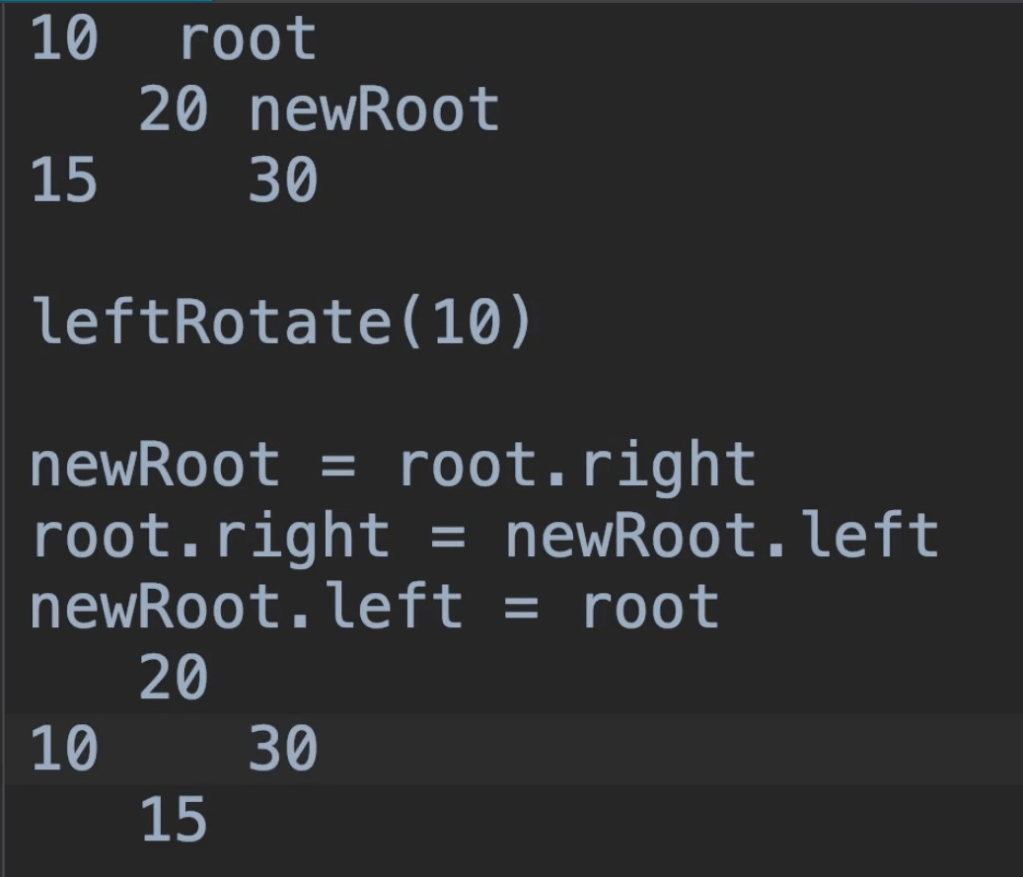

Left rotation
  • Exercises:
    • check a perfect tree: the relation between height and size
  • BST:
    • Average: O(log(n)): each time remove half
    • Worst O(n): like a linked list

Heaps

  • Requirement for heap

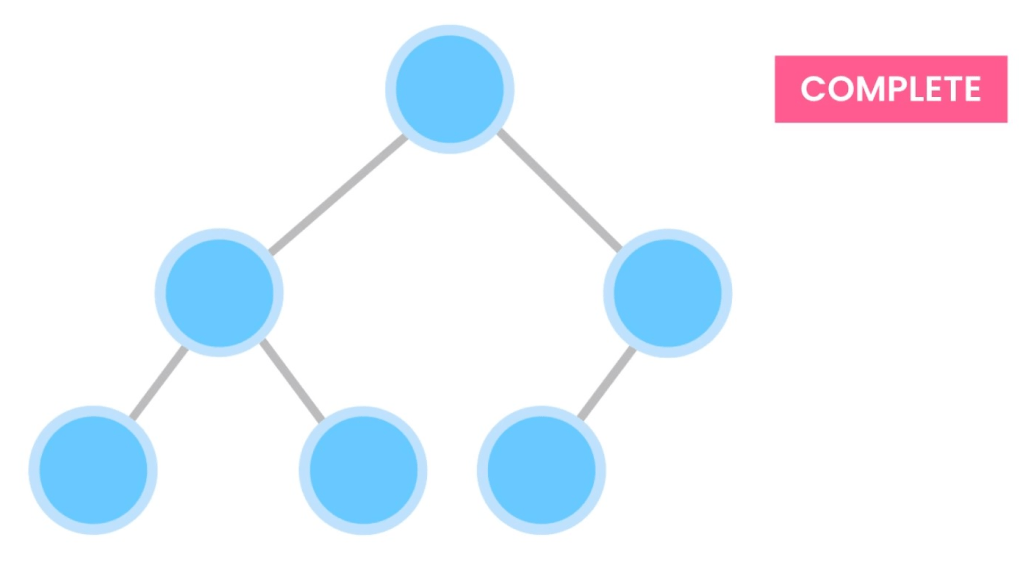

    • Complete tree: each level except the last level is completely filled, and the last level is filled from left to the right.
    • Heap property: every node is larger or equal to its children
  • Use cases:
    • Sorting (HeapSort)
    • Graph algorithms (shortest path)
    • Priority queues
    • Finding the Kth smallest / largest value

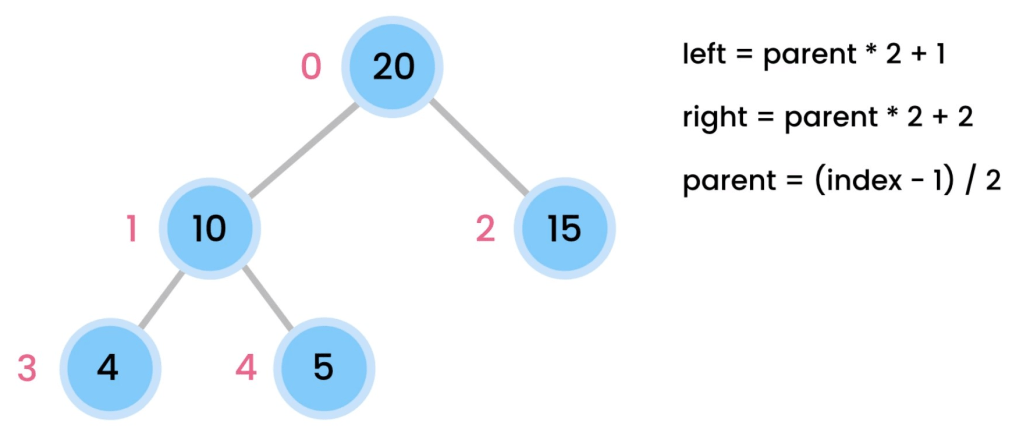

  • Heaps are always stored in array
  • Insert(): add to the end in the array, compare with its parent value, if it’s larger, bubble up until the right position O(log(n))
  • remove(): move the last item to the root, compare with its chidren, if it’s smaller, bubble down until the right position O(log(n))
  • Sorting data:

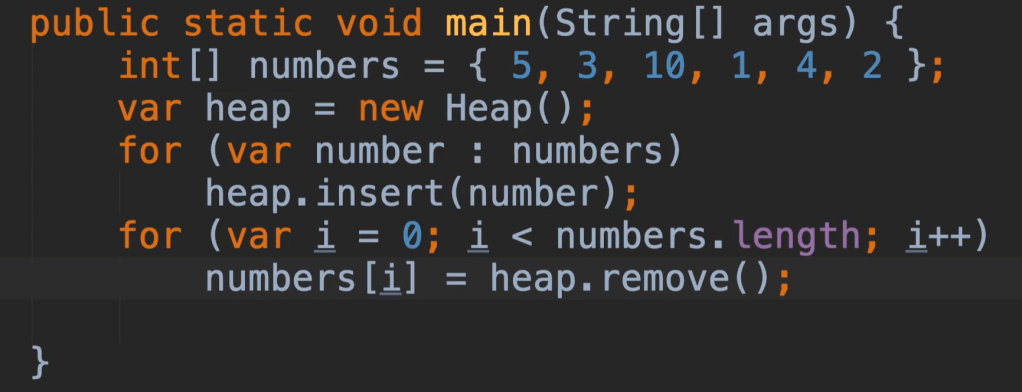

Sorting using heap
  • Priority Queue: implementation with heap, insert O(n) -> O(log(n)), delete O(1) -> O(log(n))
  • Exercise:
    • Heapify: transforming an array into a heap.
      • Actually don’t have to perform the operation on the leaf nodes, because they have no children. And the number of leaf nodes is half of the array size.
      • The last parent node: (n / 2 ) – 1

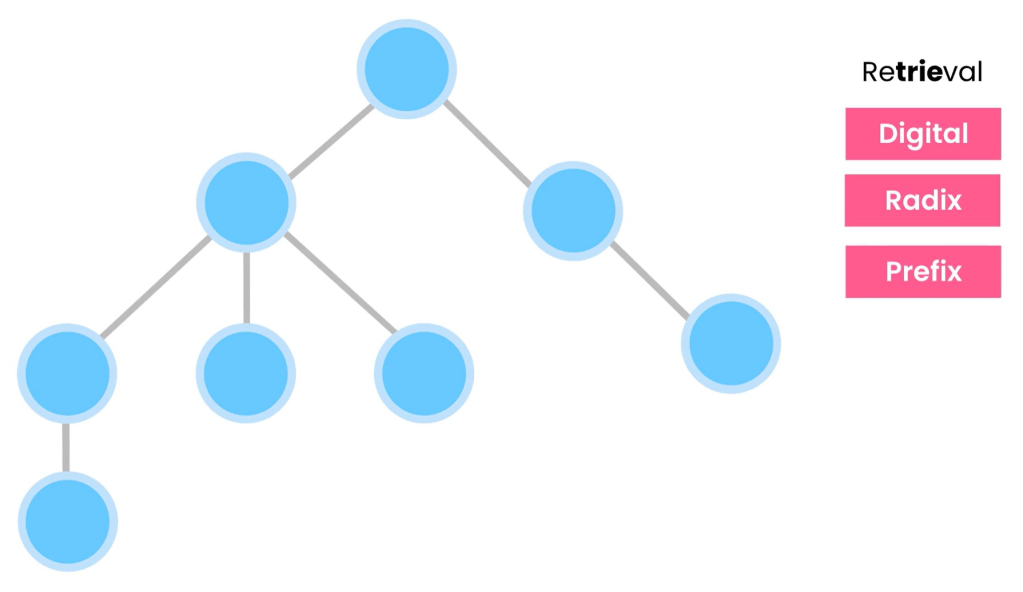

Tries

Tries
  • Operations: O(L), L is the length of the word searching for / inserting / deleting
    • Lookup
    • Insert
    • Delete
  • Build a trie
    • start with root, which is always empty
    • at the end of the inserting word, mark it as the end of a word
note for building a trie
  • When using array to store the children node, it’s kind of waste of memory, optionally could use hash table <key, Node>
  • Traversals
    • Pre-order: visit the root first
    • Post-order: visit the leaf first
  • Exercise:
    • remove a word: post-order
    • auto completion: pre-order

Graphs

  • Types:
    • directed graph (twitter)
    • undirected graph (facebook)
    • edges may also have weight (find shortest path between two nodes)
  • Adjacency matrix
  • Adjacency matrix Operations:
    • space O(v²) v = number of vertices
    • Add / remove / query edge: O(1), use hash table to store nodes and their indexes
    • Find neighbors : O(v)
    • Add / Remove node: O(v²), copy and move to new matrix

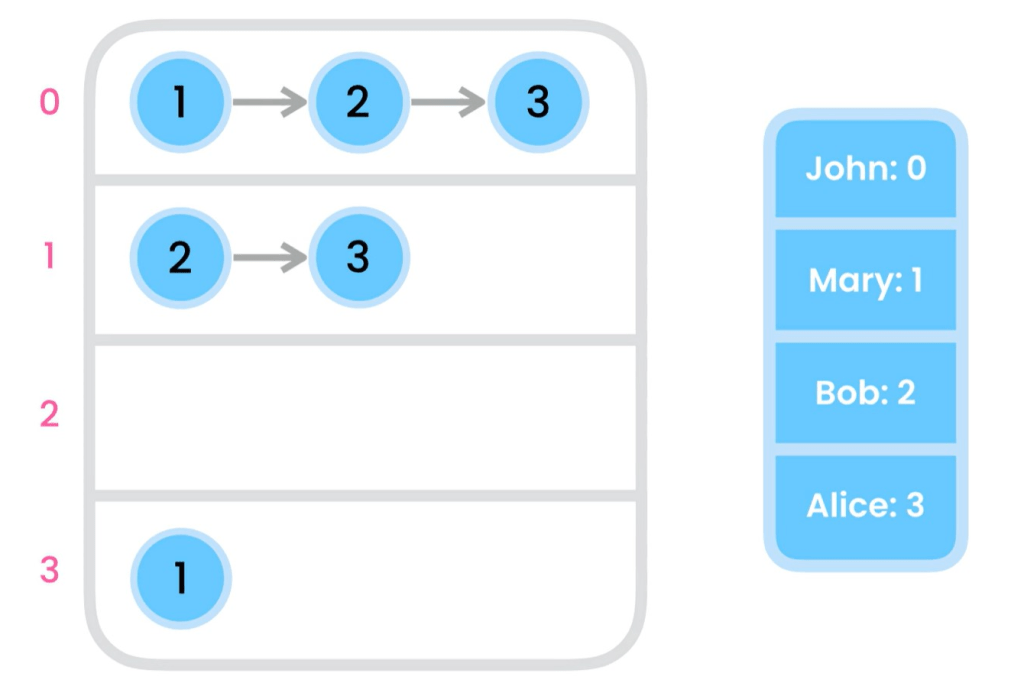

  • Adjacent List: array of linked lists, the linked list contains adjacent nodes, only store the edges that exist
  • Dense graph: each node connected to all the other nodes
    • E = V * (V – 1)
  • Operations:
    • Space complexity: O(V + E) = O(V + V² -V) = O(V²)
    • Add node: O(1)
    • Remove node: O(V + E) = O(V²)
    • Add edge: O(K) (K is the number of the neighbors ), worst case: O(V) (multi graph, two nodes can be connected by multiple edges: O(1))
    • Remove edge: O(K), worst case: O(V)
    • Query edge: O(K), worst case: O(V)

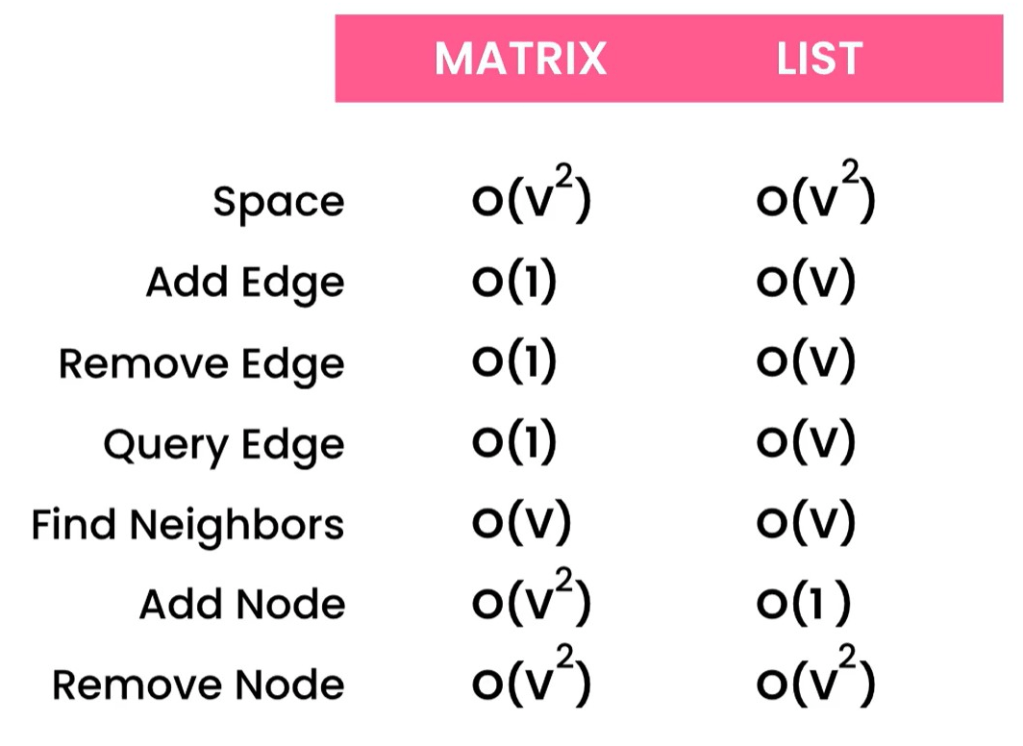

  • Comparison
    • When is a dense graph, matrix has a better performance

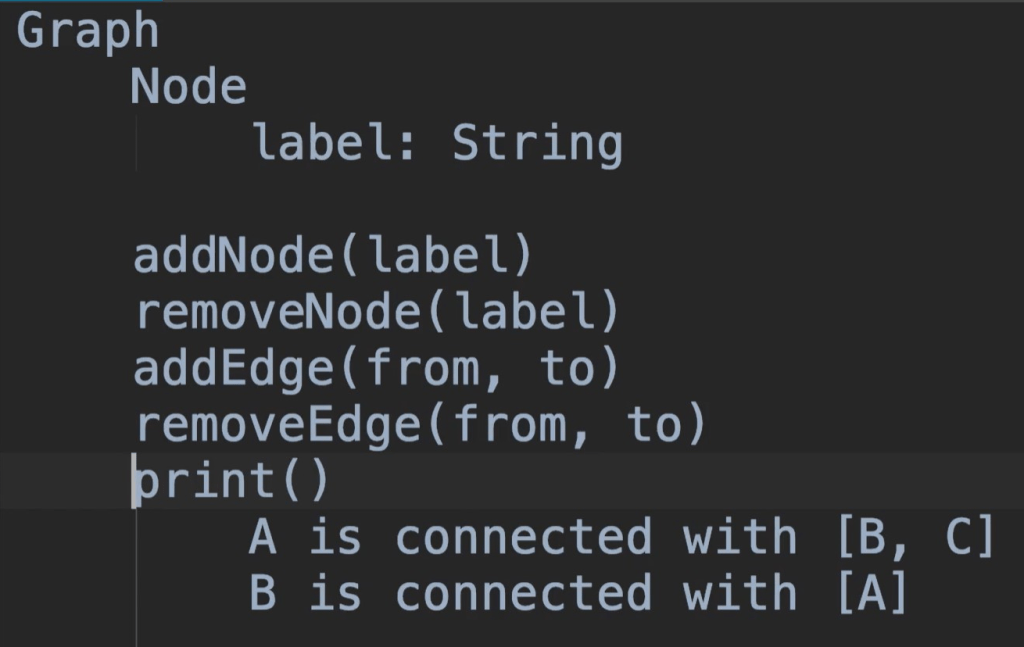

  • Implementation
    • One hash table for the nodes Map(String, Node)
    • one hash table for the edges (adjacencyList) Map<Node, List<Node>>
    • add nodes and edges: add node to the nodes list and adjacencyList
    • remove nodes and edges: remove all the connections, remove from adjacencyList, remove from nodes list
  • Traverse:
    • Depth-first:
      • A Set to track visited node
      • Stack
    • Breadth-first:
      • Queue
  • Topological Sorting
    • may have different result
    • work with directed acyclic graph (without cycle)
  • Detect cycle in a directed graph

Undirected Graphs

  • Weighted graph
  • Dijkstra’s shortest path algorithm
  • Cycle detection:
    • Visiting nodes & visited nodes
  • spanning tree: E = V – 1
    • Minimum Spanning tree:
      • Prim’s Algorithm: extend the tree by adding the smallest connected edge
